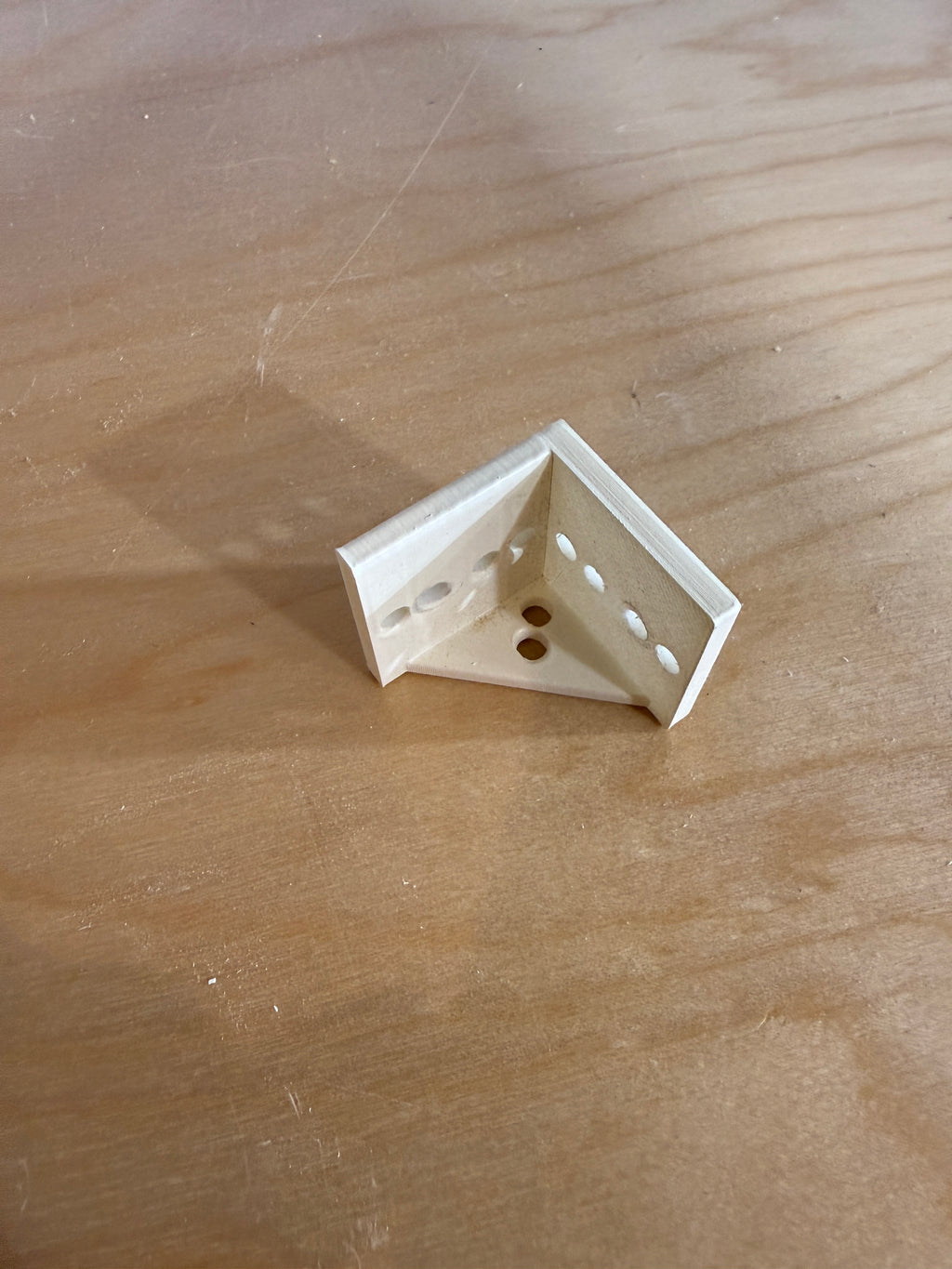

1-1/4" Right-Angle Support Bracket — Multi-Hole Mounting — 10-Pack

SHORT DESCRIPTION:

Sold in 10-packs. 1-1/4" right-angle structural support bracket with multiple screw holes on every face for maximum mounting flexibility. Built for cabinet construction, face frame reinforcement, furniture assembly, and any joint that needs added support. PETG construction — strong, durable, and quieter to install than metal brackets.

FULL PRODUCT DESCRIPTION:

A serious structural bracket for shops that need real reinforcement, not just a token L-bracket. This 1-1/4" right-angle support brace is designed to lock perpendicular pieces together — face frame to cabinet side, panel to panel, leg to apron, or anywhere a joint needs extra holding power.

What sets it apart from a standard metal corner brace: multiple screw holes on every mounting face. You're not limited to the two-screw pattern that comes with the bracket — you can pick any combination of holes that gives you the best bite into the wood, avoids splits near edges, and lets you work around grain direction or existing fasteners.

The 90° gusset shape braces the joint in two directions at once, distributing load across both faces rather than concentrating it at a single screw line. Printed in PETG for high impact resistance, heat tolerance, and long-term durability — these aren't toys. They're shop-grade parts that hold up under real load.

Why shops love this part:

• 1-1/4" × 1-1/4" × 1-1/4" — versatile size that fits inside most cabinets, face frames, and furniture joints
• Multiple screw holes per face — choose your fastener pattern based on the application
• 90° right-angle gusset for two-directional bracing
• Strong PETG construction — high impact resistance, heat tolerance, won't get brittle in cold or warp in heat
• Sold in 10-packs for shop-quantity stocking
• Available in black or natural to match your build
• Lighter and quieter to install than steel brackets — no metal-on-metal noise, no rust, no electrical conductivity

Specs:

• Material: PETG (heat-resistant, impact-resistant, UV-stable)
• Dimensions: 1-1/4" × 1-1/4" × 1-1/4"
• Angle: 90° (right angle)
• Mounting: Multiple screw holes on each face (screws not included)
• Recommended fasteners: #6 or #8 wood screws (length depending on application)
• Color: Black or Natural
• Pack quantity: 10 pieces

What's included:

• (10) 1-1/4" right-angle support brackets per pack
• Bulk pricing available on orders of 2+ packs (see quantity discounts at checkout)

Common applications:

• Cabinet construction — face frame to cabinet side reinforcement, bulkhead bracing, deck-to-side joints
• Furniture building — leg to apron joints, table aprons, chair frames, drawer box reinforcement
• Built-ins and millwork — attaching panels, securing trim returns, reinforcing miters
• Shelving — supporting heavy loads at shelf-to-side joints
• General woodworking — anywhere a corner brace would help and steel feels like overkill
• Repair and retrofit — strengthening failing joints in existing furniture or cabinetry

Installation:

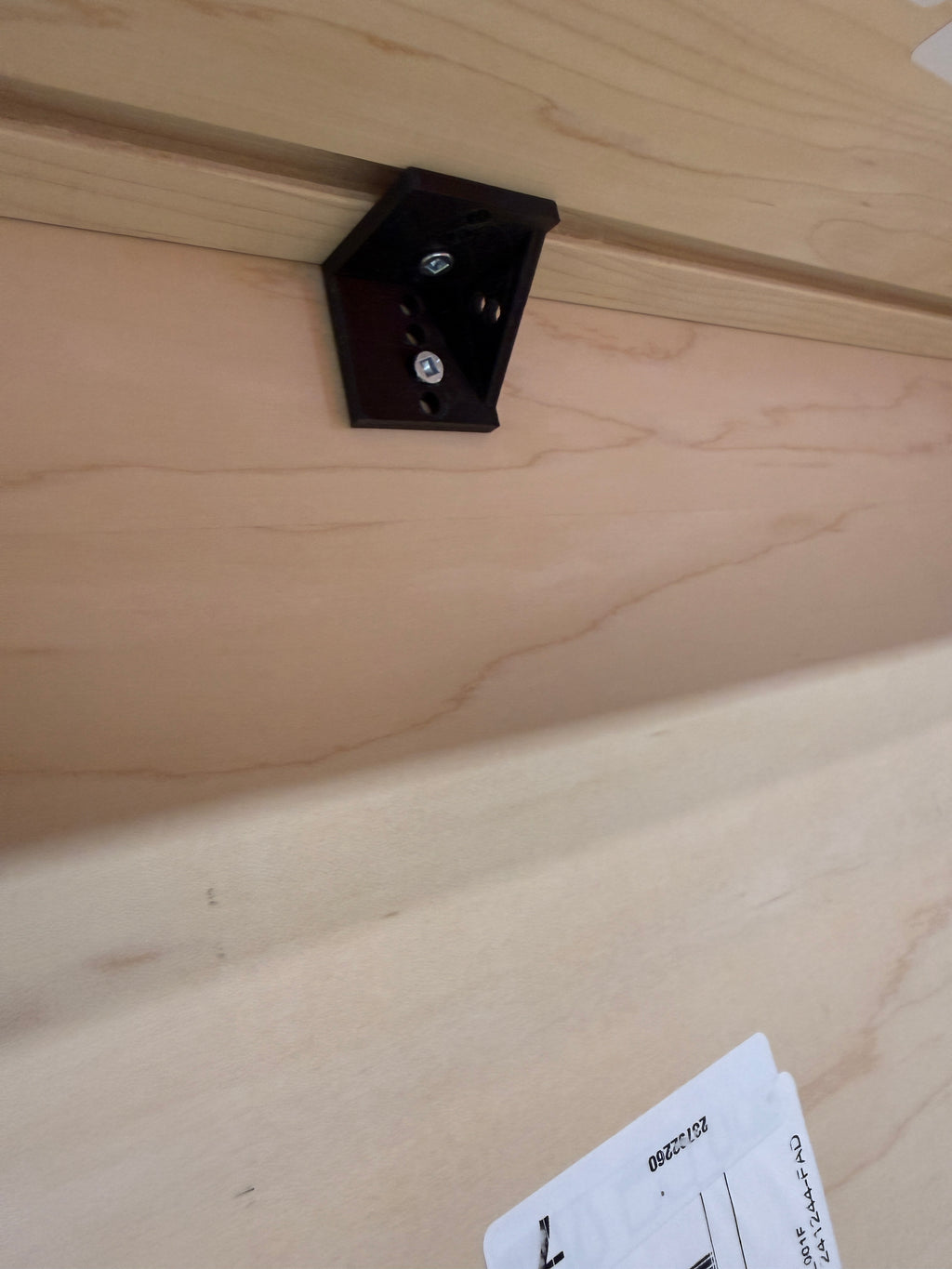

1. Position the bracket inside the corner of the joint you want to reinforce
2. Choose the screw holes that give you the best grip — avoid driving too close to wood edges to prevent splits
3. Pre-drill pilot holes in hardwood
4. Drive #6 or #8 wood screws through your chosen holes into both pieces being joined
5. The 90° gusset will pull both pieces tight to each other as you tighten

Total install time: under 1 minute per bracket once positioned.

Also available: Looking for a bigger bracket for heavier loads? Check our larger structural support brackets for situations needing more surface area or longer screws.

Designed and printed in-house by working cabinetmakers. Every part we sell came out of solving our own shop problems first. These brackets are what we reach for when a joint needs to hold and a metal bracket would be ugly, overkill, or just plain in the way.
