3/4" Front Setback Mount (Inset) for Blum Undermount Slides (Cabinotch Frames and non-bottom drawers)

Building inset cabinets with Cabinotch boxes and Blum undermount slides? You've probably hit the wall every cabinetmaker hits: the standard Blum front locator doesn't account for the face frame thickness, leaving your drawer front proud of the frame instead of flush inset.

This bracket solves it.

Designed specifically for Cabinotch face frame cabinets running Blum Tandem or Tandem Plus undermount slides, this front bracket relocates the slide mounting point back 3/4" — exactly the offset needed for a clean inset flush look. The slide attaches directly to the bracket using a standard Euro screw (not included). Install once, and every drawer in the run lines up perfectly with the face frame.

Why shops love this part:

• True 3/4" setback built into the bracket — no measuring, no shimming, no second-guessing
• Direct Euro screw mounting — same hardware you're already using
• Printed in PETG for impact resistance, heat tolerance, and long-term durability in shop and home environments
• Repeatable installs — every drawer in the cabinet hits the same depth automatically
• Saves 15+ minutes per drawer compared to fabricating wood blocks or fighting with shims

Specs:

• Material: PETG (heat-resistant, impact-resistant, UV-stable)
• Setback offset: 3/4" (0.750")
• Compatible slides: Blum Tandem 563H, Tandem Plus 569H, and other Blum undermount series using the standard front locator interface
• Compatible cabinets: Cabinotch face frame construction
• Mounting: Euro screw (standard 6.3mm — sold separately)
• Color:  black

What's included:

• Left and Right front mounting bracket per pack
• Sold individually, or in bulk packs (see quantity options)

Installation:

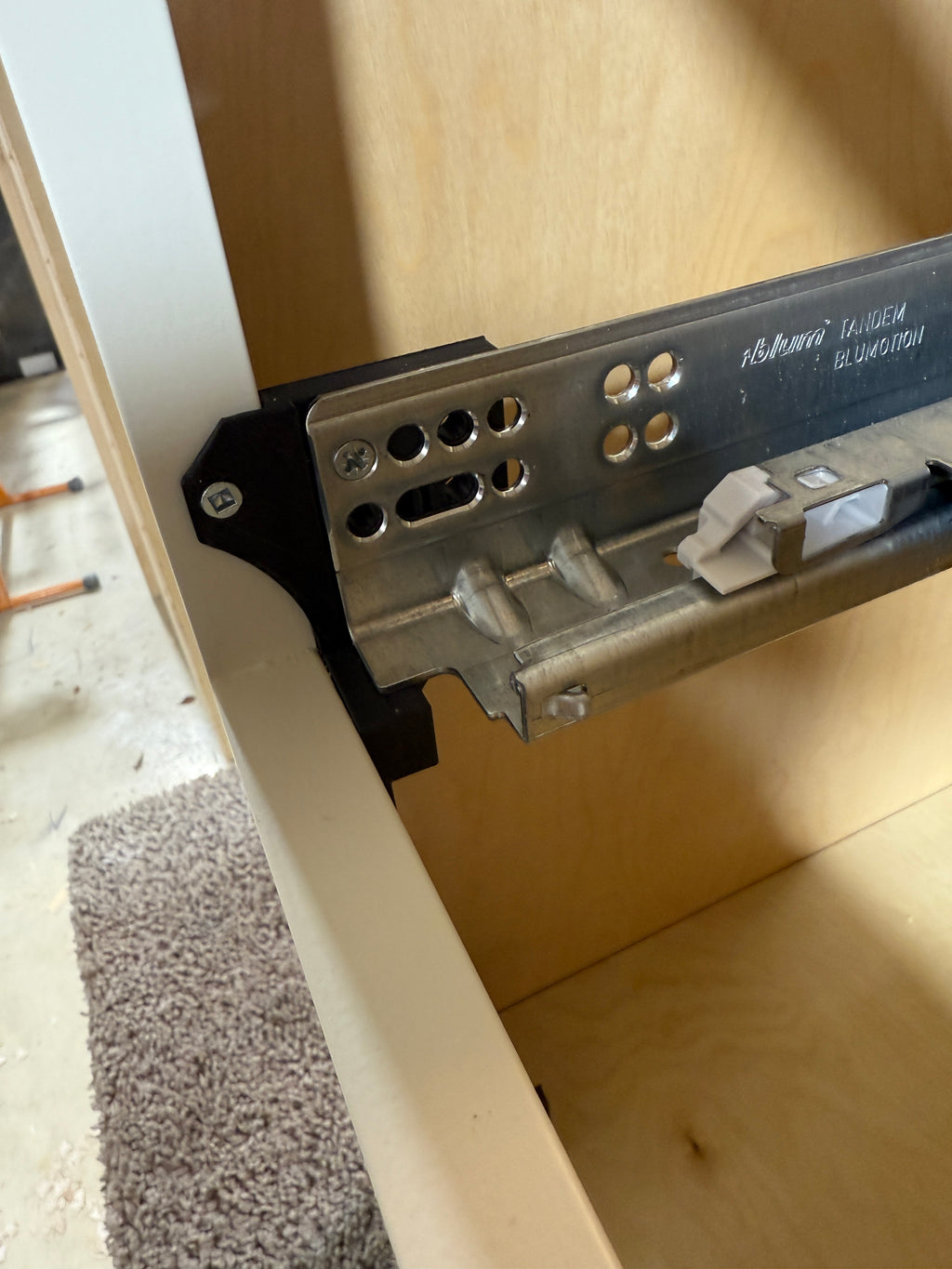

Secure bracket to the inside and backside of the face of the cabinet with screws (not included), then attach your Blum undermount slide using a standard Euro screw. Repeat for the opposite side. Total install time: under 2 minutes per drawer once you've done the first one.  These can also be installed on the Cabinotch frames prior to cabinet assembly.

Designed and printed in-house by working cabinetmakers. This part came out of our own shop solving our own problem — now we're making it available to other shops dealing with the same Cabinotch + Blum + inset combo.
