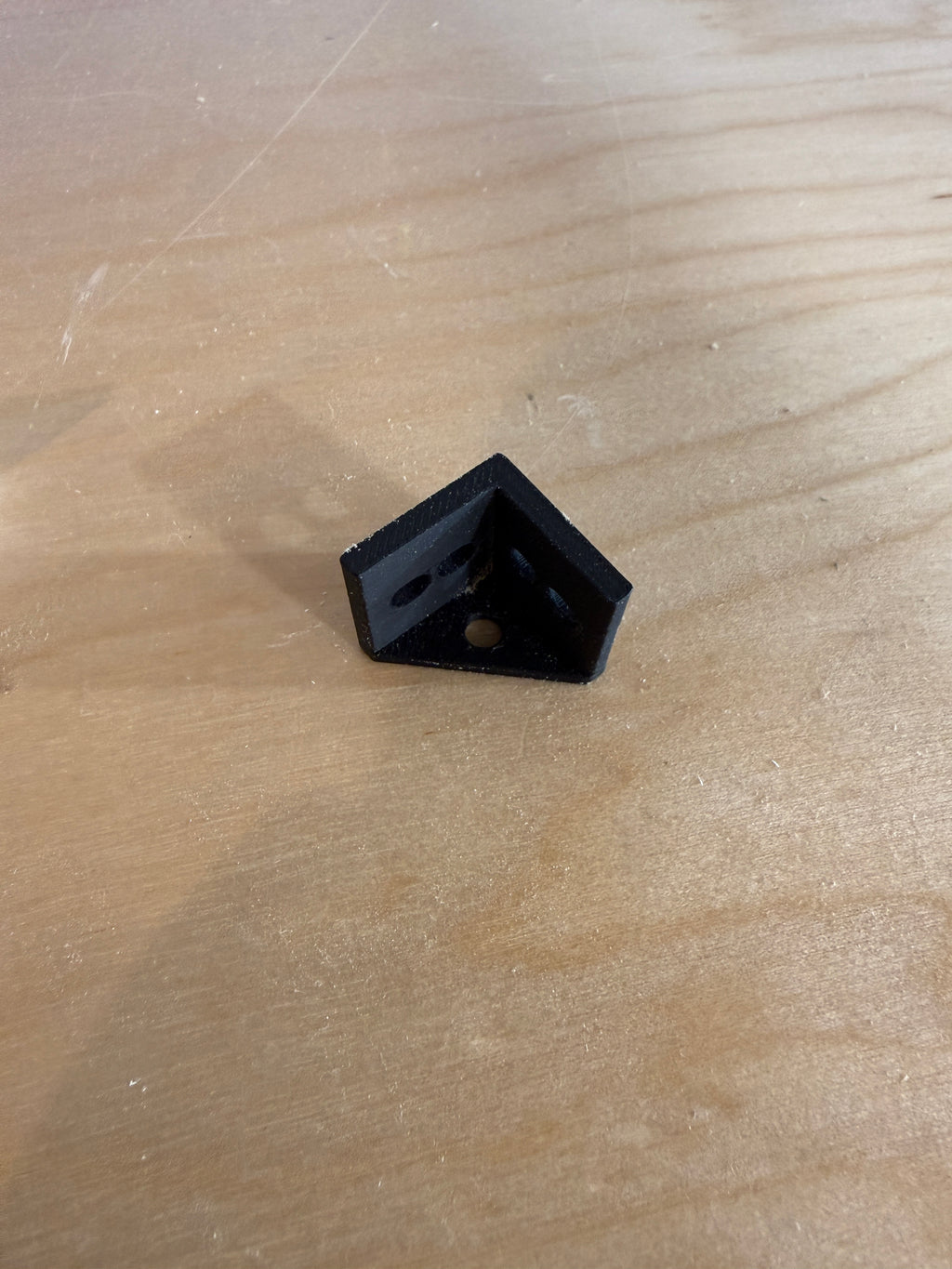

3/4" Right-Angle Support Bracket — Multi-Hole Mounting — 10-Pack

SHORT DESCRIPTION:

Sold in 10-packs. 3/4" right-angle structural support bracket with multiple screw holes on every face for maximum mounting flexibility. Compact size for tight spaces, drawer boxes, smaller furniture joints, and anywhere a full-size bracket won't fit. PETG construction — strong, durable, and quieter to install than metal brackets.

FULL PRODUCT DESCRIPTION:

The compact version of our structural support bracket — same multi-hole mounting flexibility, same shop-grade PETG construction, scaled down for tight spaces where a 1-1/4" bracket won't fit.

At 3/4" × 3/4" × 3/4", this bracket slides into drawer box corners, small face frame joints, tight bulkhead reinforcements, and anywhere clearance is too tight for a full-size brace. It still gives you multiple screw holes on every mounting face — pick the screw pattern that gives you the best bite, avoids splits near edges, and works around grain direction or existing fasteners.

The 90° gusset shape braces the joint in two directions at once, distributing load across both faces. PETG construction means high impact resistance, heat tolerance, and long-term durability — these are real structural parts, not decorative.

Why shops love this part:

• 3/4" × 3/4" × 3/4" — compact size fits tight spaces where a larger bracket won't
• Multiple screw holes per face — choose your fastener pattern based on the application
• 90° right-angle gusset for two-directional bracing
• Strong PETG construction — high impact resistance, heat tolerance, won't get brittle or warp
• Sold in 10-packs for shop-quantity stocking
• Available in black or natural to match your build
• Lighter and quieter to install than steel brackets — no metal-on-metal noise, no rust, no electrical conductivity

Specs:

• Material: PETG (heat-resistant, impact-resistant, UV-stable)
• Dimensions: 3/4" × 3/4" × 3/4"
• Angle: 90° (right angle)
• Mounting: Multiple screw holes on each face (screws not included)
• Recommended fasteners: #4 or #6 wood screws (length depending on application)
• Color: Black or Natural
• Pack quantity: 10 pieces

What's included:

• (10) 3/4" right-angle support brackets per pack
• Bulk pricing available on orders of 2+ packs (see quantity discounts at checkout)

Common applications:

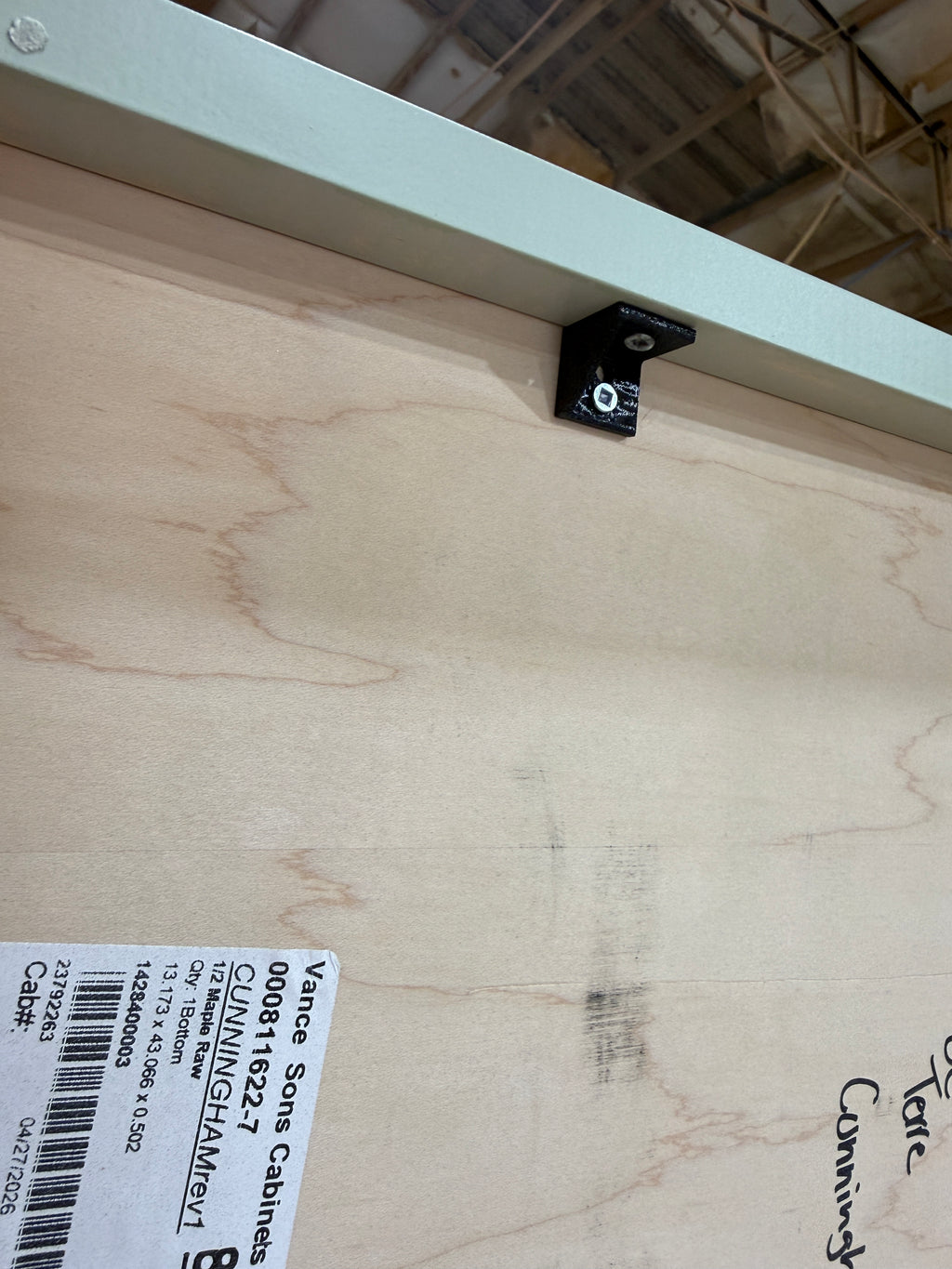

• Drawer box construction — corner reinforcement for small or jewelry-style drawers
• Small cabinet work — tight bulkhead joints, narrow face frame reinforcement
• Furniture detailing — small leg-to-apron joints, jewelry boxes, decorative builds
• Built-ins and millwork — securing trim returns, attaching small panels
• Repair work — strengthening failed joints in smaller furniture or fixtures
• Tight-space reinforcement — anywhere a full 1-1/4" bracket would be too bulky

Installation:

1. Position the bracket inside the corner of the joint you want to reinforce
2. Choose the screw holes that give you the best grip — small brackets are more sensitive to edge splits, so place screws thoughtfully
3. Pre-drill pilot holes in hardwood — even more important at this size
4. Drive #4 or #6 wood screws through your chosen holes into both pieces being joined
5. The 90° gusset will pull both pieces tight to each other as you tighten

Total install time: under 1 minute per bracket once positioned.

Pair it with the larger size:

Need more holding power or surface area? Check out our 1-1/4" Right-Angle Support Bracket for bigger joints, heavier loads, and standard cabinet construction work. Most shops keep both sizes on the shelf so they have the right bracket for any job.

Designed and printed in-house by working cabinetmakers. Same quality and design philosophy as the 1-1/4" bracket — built to solve real shop problems, sized for the jobs where space is at a premium.
