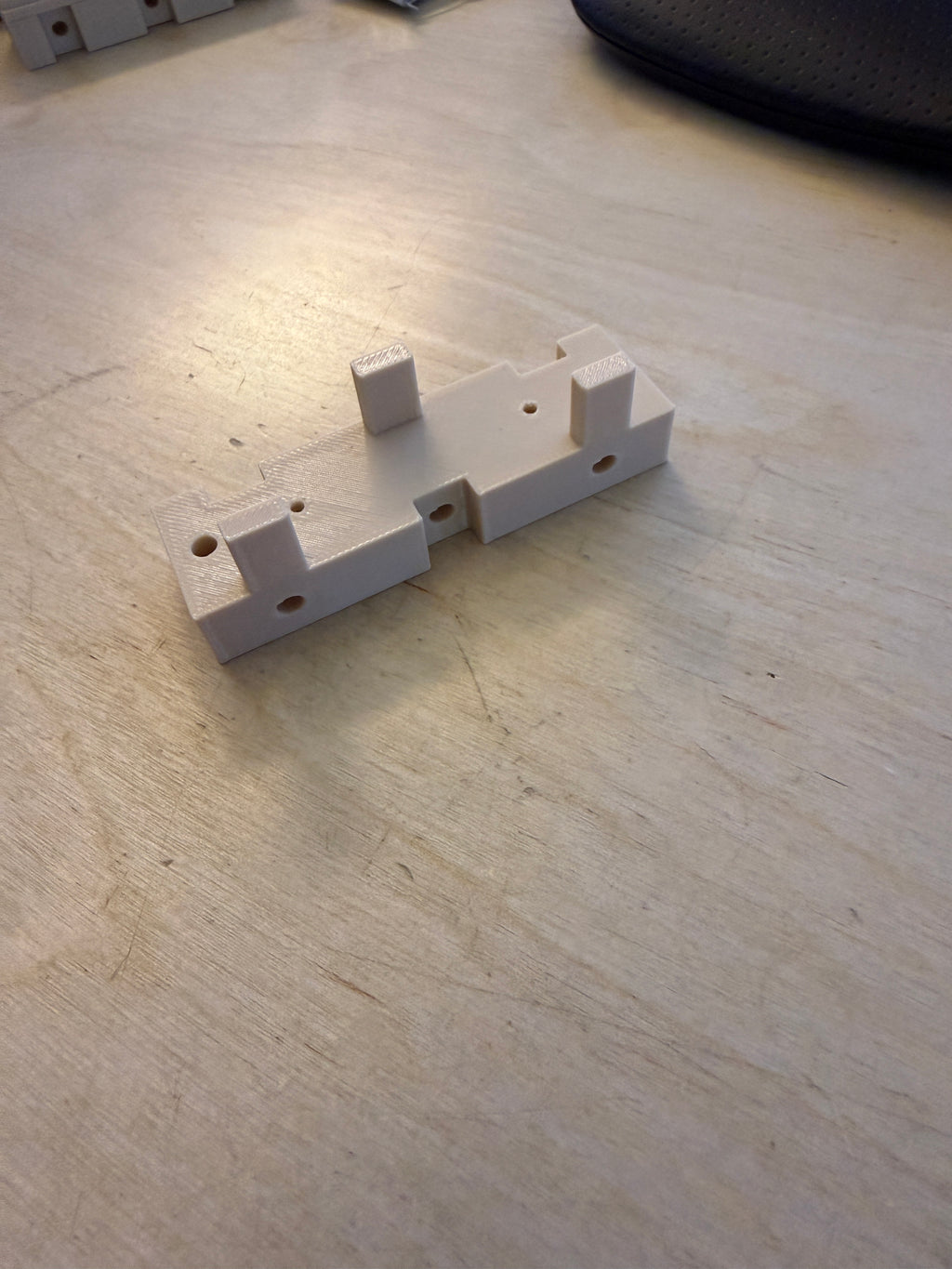

Hinge Plate Mount Expander to 1-1/4" (31.75mm) — Blum & Titus Long Arm — 10-Pack

SHORT DESCRIPTION:

Sold in 10-packs. Stack-on expander that builds our hinge plate mount assembly to a total thickness of 1-1/4" (31.75mm). Can also continue to stack these adding 1/2" to the hinge plate mounts each time.  Use when your cabinet side or bulkhead is set back 1-1/4" behind the face frame. Requires the 1/4" Base Mounting Block AND the 3/4" Expander (both sold separately).

FULL DESCRIPTION:

Part of our modular hinge plate mounting system for inset cabinet doors. This stack-on expander snaps onto the back of the 3/4" Expander to build the total assembly thickness up to 1-1/4" (31.75mm) — the right size when your cabinet side or bulkhead is set back 1-1/4" behind the face frame.

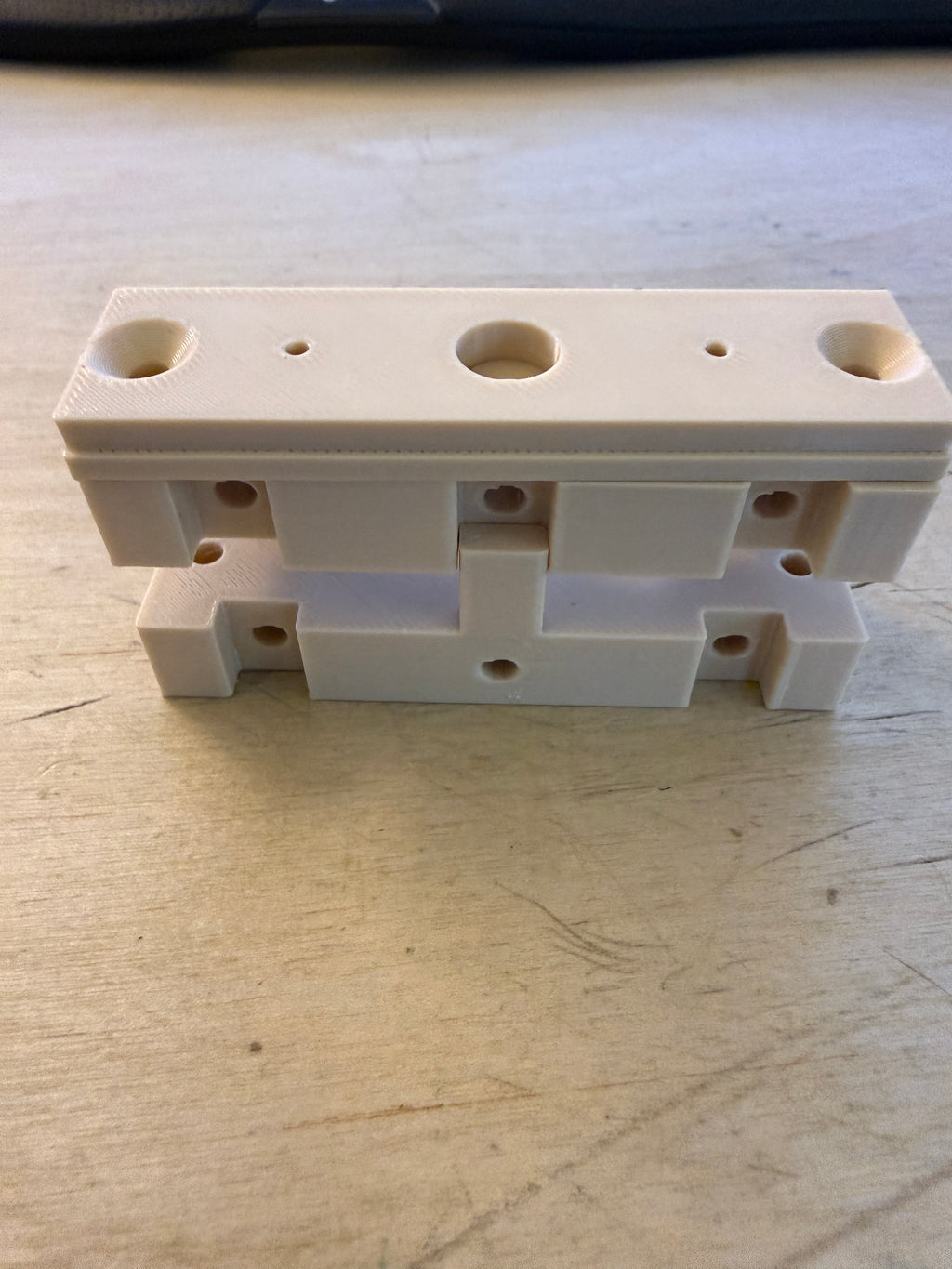

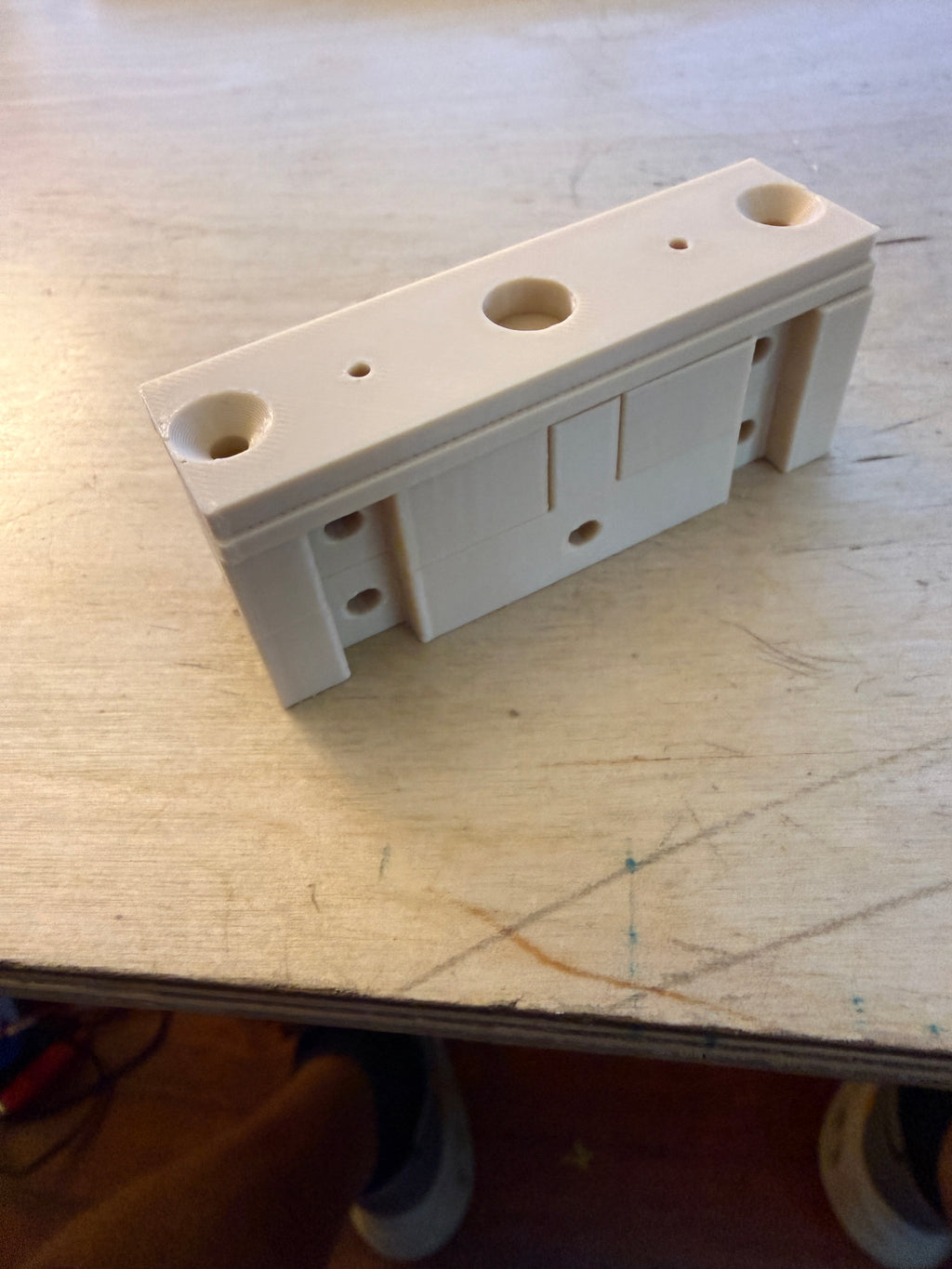

The full stack for 1-1/4": 1/4" Base Mounting Block + 3/4" Expander + 1-1/4" Expander.

No gluing up custom blocks. No measuring and shimming. Snap the stack together, mount the assembly, install your Blum or Titus long arm hinge plate to the front face of the base.

Why shops love this part:

• Exact 1-1/4" total thickness when stacked on the full system
• Snap-on installation — no glue, no extra fasteners
• Works with Blum AND Titus long arm hinge plates through the base block
• Repeatable across the entire cabinet run — every door lands in the same spot
• Sold in 10-packs for shop-quantity stocking
• Printed in PETG for impact resistance and long-term durability
• Available in black or natural

Specs:

• Material: PETG (heat-resistant, impact-resistant, UV-stable)
• Adds: 1/2" to the back of the 3/4" expander to reach 1-1/4" total
• Compatibility: Snaps onto the back of our 3/4" Hinge Plate Mount Expander
• Color: Black or Natural
• Pack quantity: 10 pieces

What's included:

• (10) 1-1/4" stack-on expander pieces per pack
• Bulk pricing available on orders of 2+ packs (see quantity discounts at checkout)

Required base parts:

This expander does not work on its own. To get to 1-1/4" total thickness, you need all three pieces stacked:

1. 1/4" Inset Hinge Plate Mounting Block (base — the part the hinge plate mounts to)
2. 3/4" Hinge Plate Mount Expander (middle layer)
3. This 1-1/4" expander (back layer)

All three are sold separately, or pick up our Complete Modular Hinge Mount Kit to get the base plus all three expander stages in one package.

Common applications:

• Inset cabinet doors where the cabinet side or bulkhead is set back 1-1/4" behind the face frame
• Cabinets with thicker face frames (5/4 stock) and standard side construction
• Custom builds with deeper face frame profiles
• Retrofit work where the original cabinet setback is non-standard

Installation:

Snap the 3/4" expander onto the back of the 1/4" base block. Then snap this 1-1/4" expander onto the back of the 3/4" expander. Position the full stacked assembly on the cabinet side or bulkhead directly behind the face frame opening. Secure with wood screws through the stack into the cabinet side. Mount your Blum or Titus long arm hinge plate to the front face of the base block using the standard hinge plate screws.

Designed and printed in-house by working cabinetmakers. Part of a modular stacking system built to handle every common face frame setback by adding the right pieces to the stack.
