Inset Hinge Plate BASE Mount for Blum & Titus Long Arm — 1/4" Thickness - 10 pack

nset doors with long arm hinges are one of the trickier setups in cabinetmaking. The cabinet side or bulkhead is typically set back behind the face frame, leaving the hinge plate floating in space with nothing solid to mount to. The standard workaround — gluing up custom blocks for every job — eats time and never produces consistent results across a run of cabinets.

This block solves the problem and scales with your build.

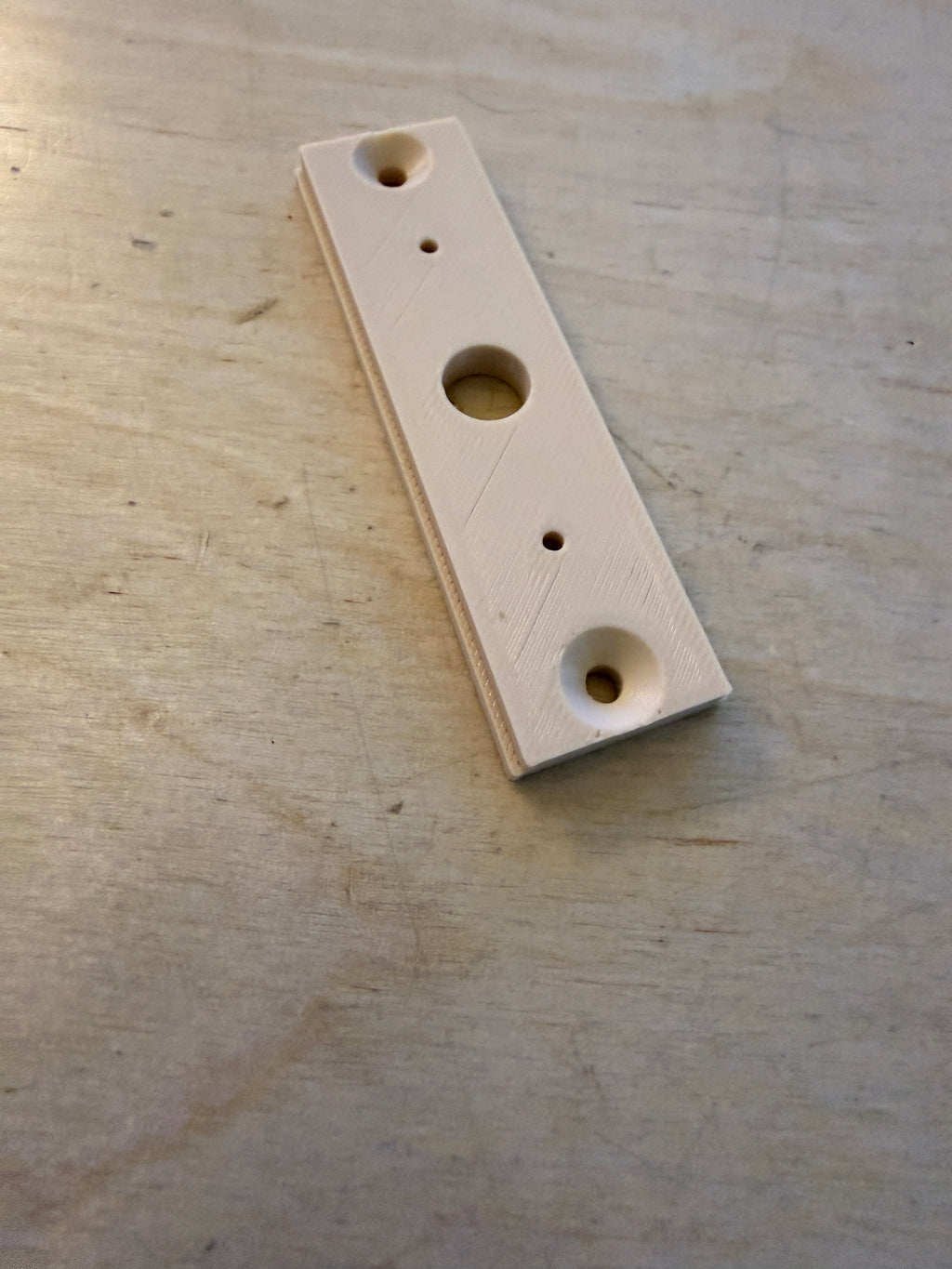

A purpose-built 1/4" thick mounting block that installs directly behind the face frame on the cabinet side or bulkhead, giving you a solid, repeatable surface to mount your hinge plate. Designed specifically for Blum and Titus long arm hinge plates, the mounting hole pattern matches both manufacturers so you can use whichever brand your shop runs.

The modular system is where this part really earns its keep. The base block assumes a 1/4" setback. When your job has a deeper setback — 3/8", 3/4", or 1-1/4" — snap-on filler pieces (sold separately) stack on the back of the base to build it up to the exact thickness you need. No gluing up blocks. No swapping out parts. Same base block, infinitely adjustable to your face frame setback.

Why shops love this part:

• Solves the inset long-arm mounting problem — solid mounting surface every time
• Modular thickness — one base part, four configurations (1/4", 3/8", 3/4", 1-1/4") with snap-on fillers
• Fits Blum AND Titus long arm hinge plates — same hole pattern works for both
• Repeatable installs — every hinge in the run lands in exactly the same spot
• Saves 10–15 minutes per door vs. fabricating wood blocks for each location
• Printed in PETG for impact resistance and long-term durability
• Available in black or natural

Specs:

• Material: PETG (heat-resistant, impact-resistant, UV-stable)
• Base thickness: 1/4"
• Stackable to: 3/8", 3/4", or 1-1/4" with optional filler pieces (sold separately)
• Compatible hinge plates: Blum long arm, Titus long arm
• Mounting: Screws to cabinet side or bulkhead behind the face frame (screws not included)
• Hinge plate mounting: Standard Blum/Titus hole pattern
• Color: Black or Natural

What's included:

• 1/4" base mounting block - Sold in Packs of 10
• Filler pieces sold separately — see related products to build to 3/8", 3/4", or 1-1/4


Common applications:

• Inset cabinet doors with face frame construction
• Cabinets where the side or bulkhead is set back from the face frame
• Custom builds requiring consistent hinge plate mounting across multiple cabinets
• Shops standardizing on Blum or Titus long arm hardware
• Retrofit situations where the original mounting surface is insufficient

Installation:

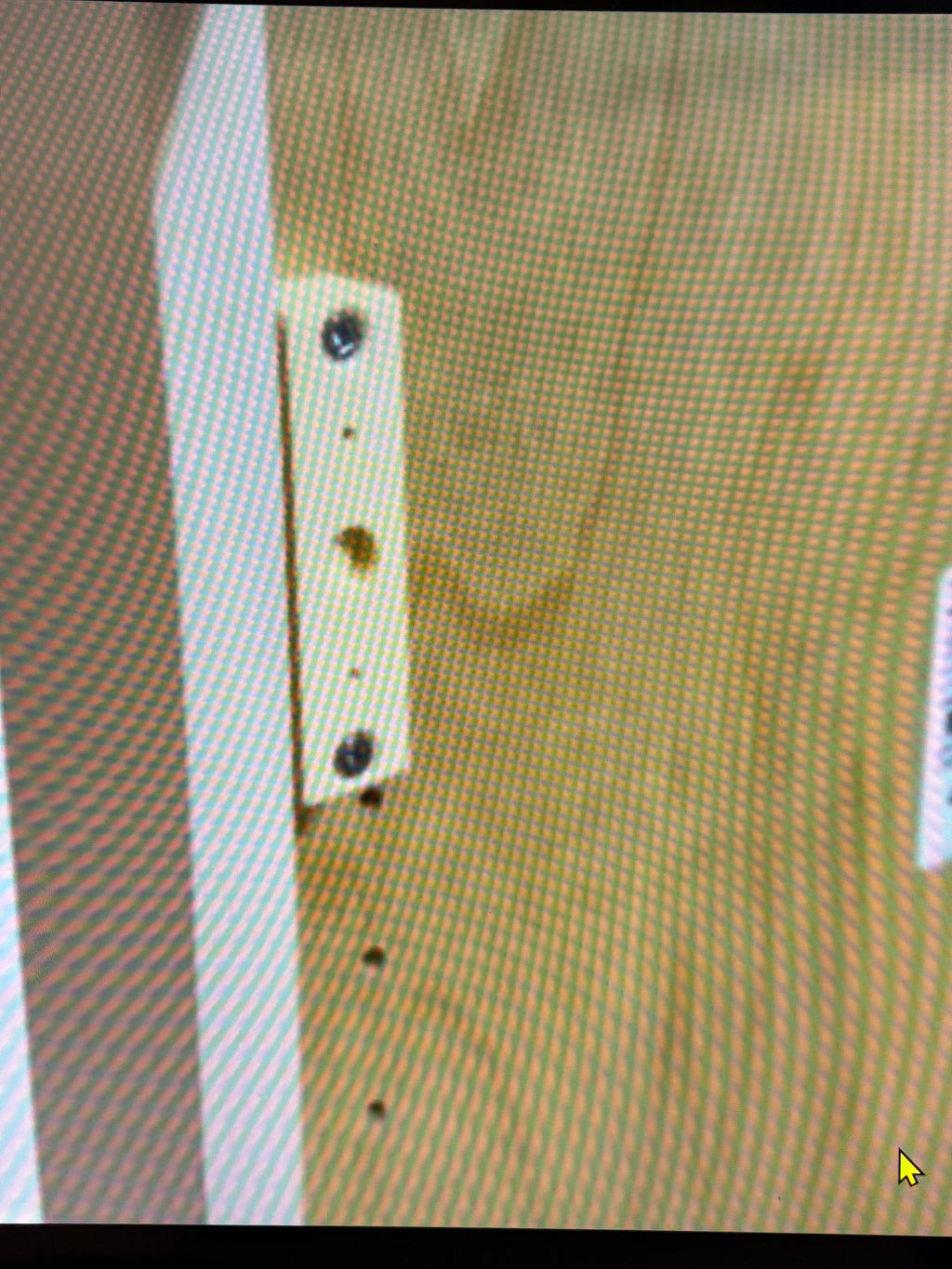

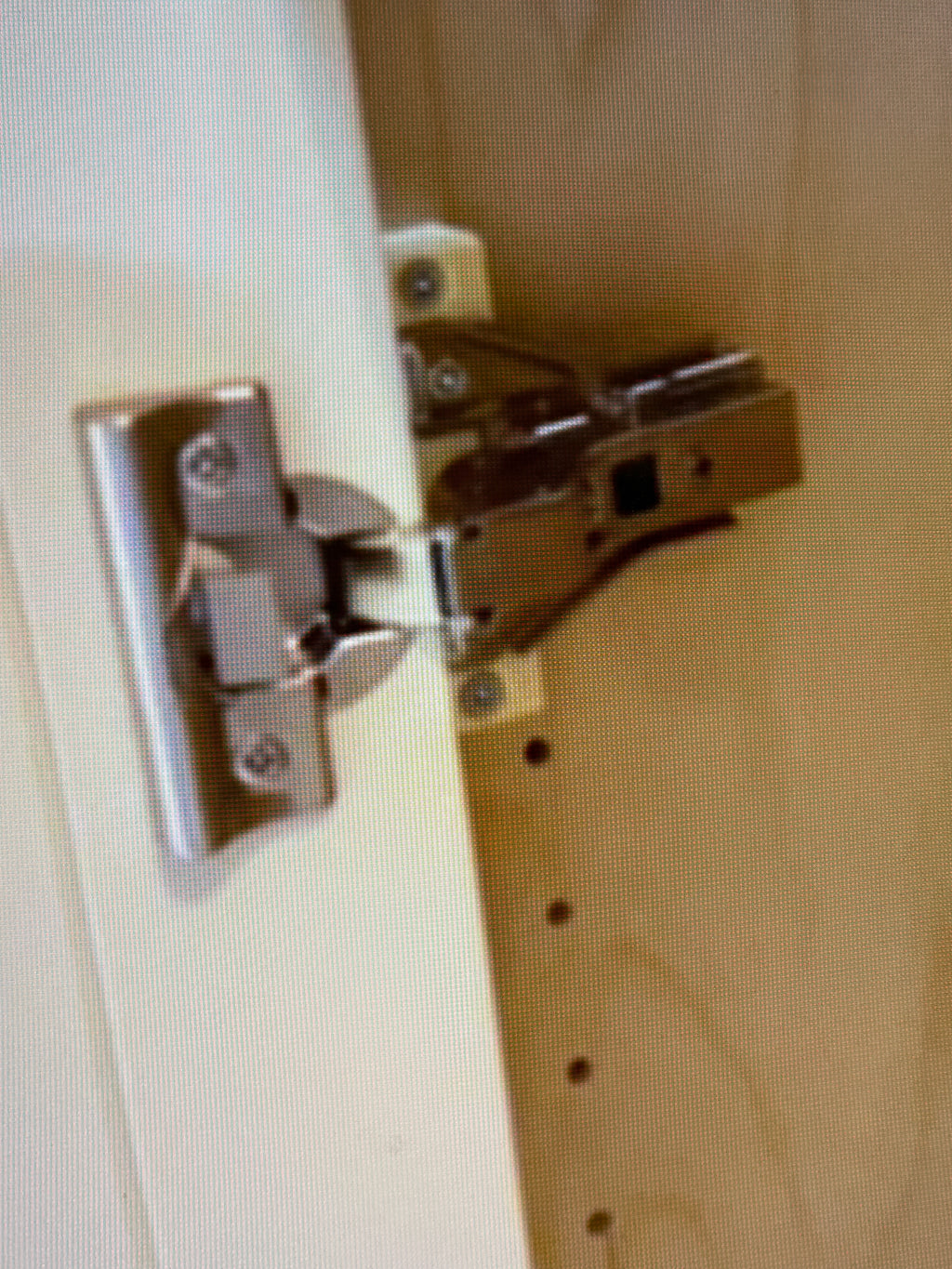

Position the base block on the cabinet side or bulkhead directly behind the face frame opening where the hinge plate needs to land. If your setback is deeper than 1/4", snap the appropriate filler piece(s) onto the back of the base to build to the correct thickness. Secure with wood screws through the block into the cabinet side. Mount your Blum or Titus long arm hinge plate to the front face using the standard hinge plate screws.  We have a jig that can be purchased that makes this go super quick.  It is based on a 100mm door edge to center of hinge boring.

Designed and printed in-house by working cabinetmakers. This came out of our shop after one too many jobs spent gluing up custom mounting blocks for inset doors. Now we're sharing it with other shops doing the same work.
